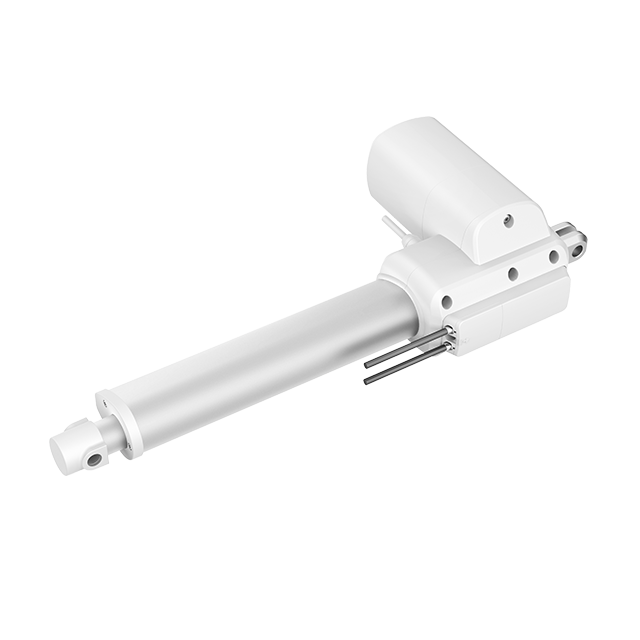

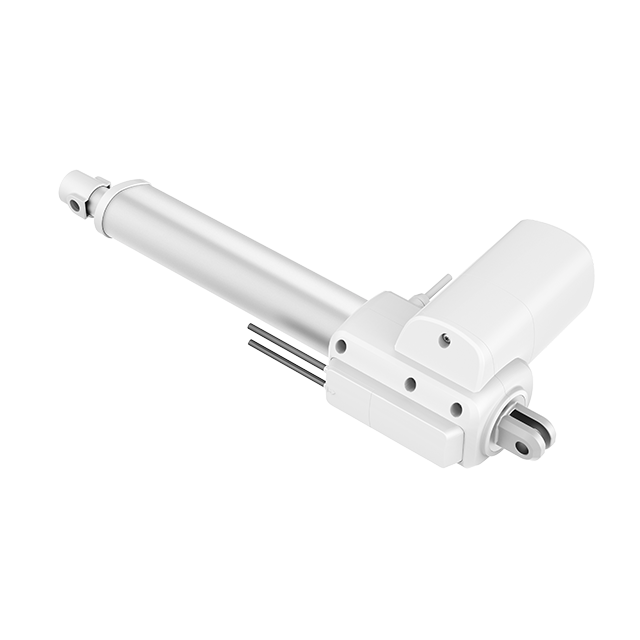

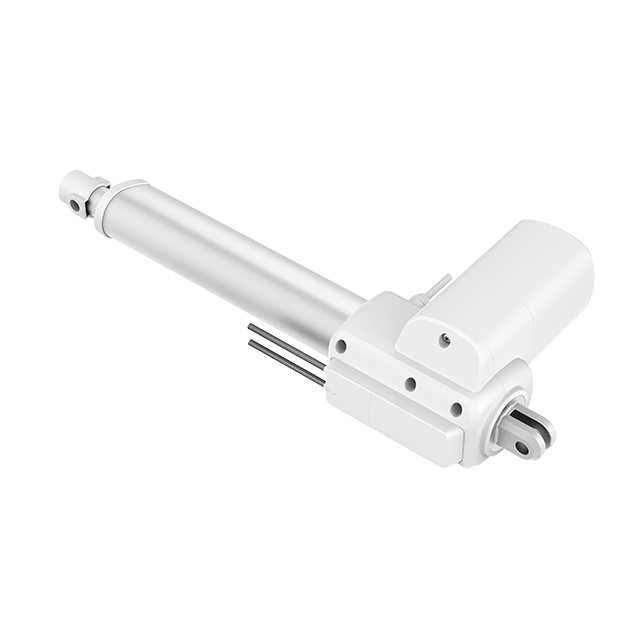

Linear Actuator JC35L23

Dynamic load push:6000N

Color:Gray

IP grade: Max. IPX6

Stroke length:6000N:50-300mm

Retracted length :

L=S+185(50≤S≤300)

L=S+195(50≤S≤300,with anti-pitch option)

Noise level:≤48dB（Environmental noise≤40dB）

Quickly release:standard

safety nut：standard

Options:,hall sensor option, anti-pitch option

Built-in electric limit switch

Weight:2.8kg(based different stroke)

Static bending load: no bending load
