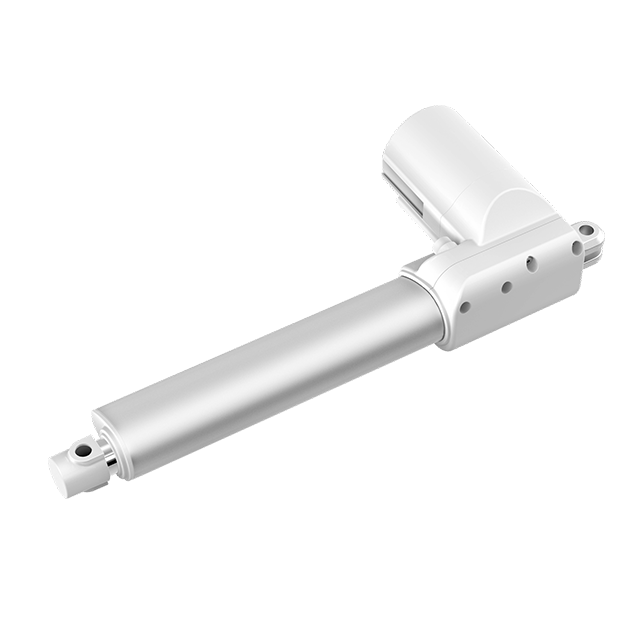

Linear Actuator JC35L29

Dynamic load push:8000N

Static pull load:4000N

Color:Gray

IP grade: Max. IPX6

Stroke:50-250mm

Retracted length:

L=S+175（50≤S≤200）

L=S+185（200＜S≤250）

Noise level:≤48dB（noise of environment≤40dB）

Safety nut: Standard

Reed switch: optional

Hall sensor: optional

Electric limit switch inside

Weight:2kg(based on different stroke)

Static bending load: no bending load
