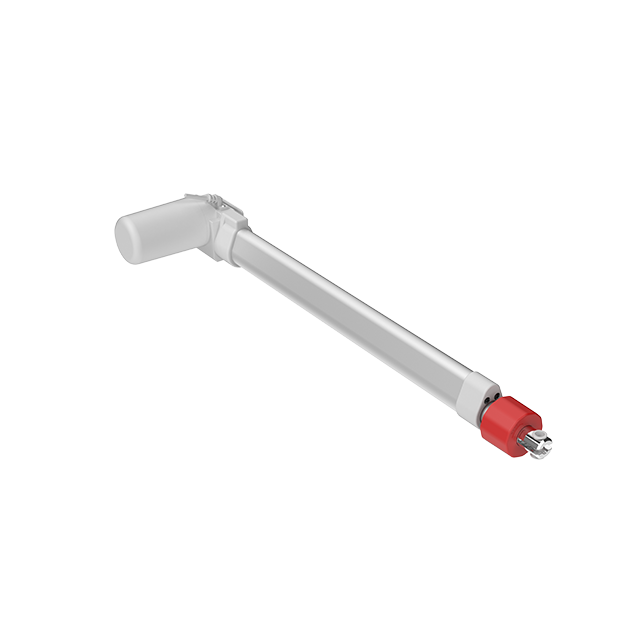

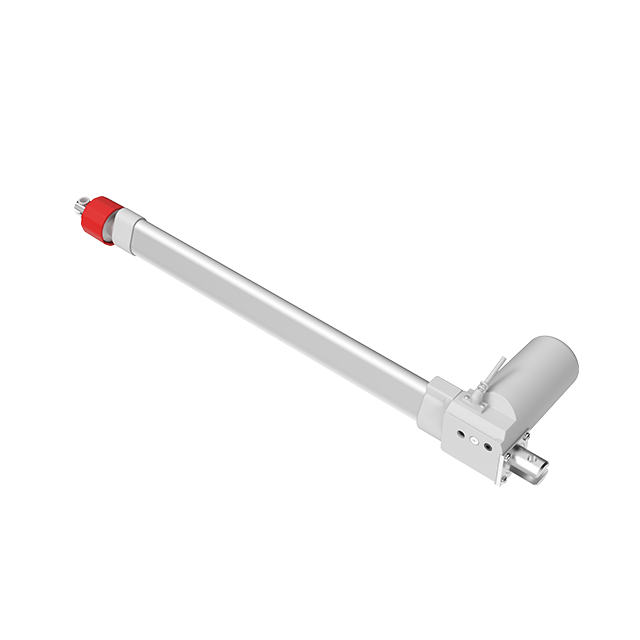

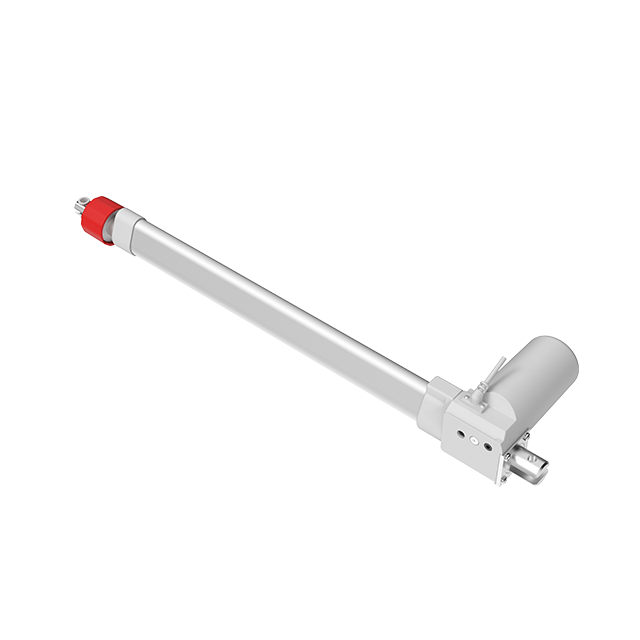

Linear Actuator JC35K1

Load in push：8000N

Color: Gray

IP grade: IP54

Stroke length:8000N：50-400mm

Installation dimensions:

L=S+260（50≤S≤300）

L=S+290（300＜S≤400）

Noise level: ≤48dB (ambient noise ≤40dB) (Standard)

≤50dB (ambient noise ≤40dB) (Only push no pull)

Hall sensor : optional

Only push no pull option : optional

Manual operation: optional

Built-in electrical limit switch.

Weight: About 2kg (different stroke length and installation dimensions with different weight )

Static bending moment: lateral load are not allowed.
