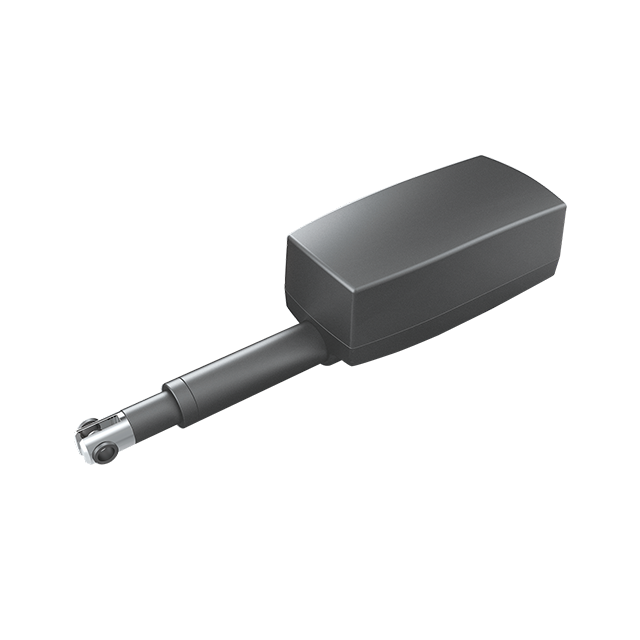

Load in push: 1500N;3000N
Load in pull: 1500N
Color: Black
IP grade: IPX4
Stroke length:
1500N:100-450mm
3000N:100-450mm
Installation dimensions: L=S+160(Lmin=260)
Noise level≤55dB(environmental noise≤40dB)
Weight: About 2.2kg (This is the weight of 200/360,different stroke length and installation dimensions with different weight)
Static bending moment: lateral load is not allowed
Load in push: 1500N;3000N
Load in pull: 1500N
Color: Black
IP grade: IPX4
Stroke length:
1500N:100-450mm
3000N:100-450mm
Installation dimensions: L=S+160(Lmin=260)
Noise level≤55dB(environmental noise≤40dB)
Weight: About 2.2kg (This is the weight of 200/360,different stroke length and installation dimensions with different weight)
Static bending moment: lateral load is not allowed
