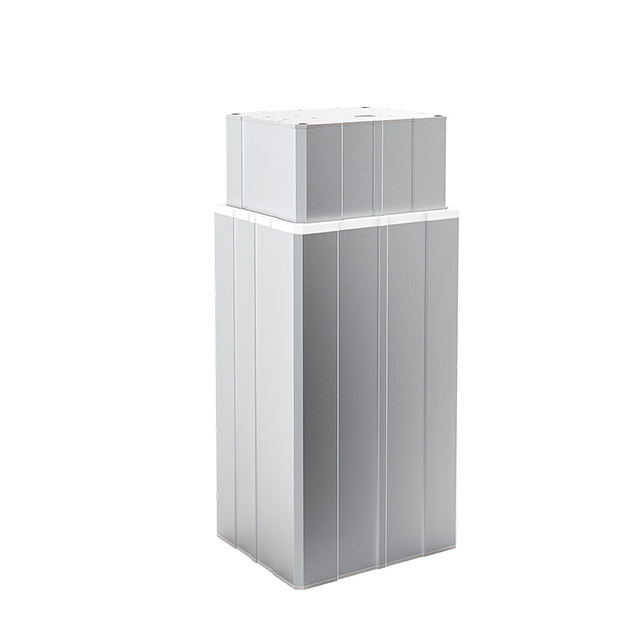

Lifting Column JC35EM2

Load in push:

JC35EM2-A/B: 4000N, 3000N, 2000N, 1500N, 1000N

JC35EM2-C: 6000N, 4000N, 3000N, 2000N, 1500N, 1000N

Load in pull: none

Color: black/white/aluminum color;

IP grade: none

Stroke length: 100-600mm±3 (optional >600mm);

Installation dimensions:

Conventional: L=S+200 (S<400), L=S+220 (400≤S<600)

Special configuration: L=S+250 (S>600)

Noise level:

JC35EM2-A/B: ≤55dB (environmental noise ≤45dB)

JC35EM2-C: ≤60dB (environmental noise ≤40dB)

Hall sensor: optional

Only push no pull : None

Built-in electical limit switch

Weight: about 21.5kg at an installation distance of 950; (different stroke length and installation dimensions with different weight)

Static bending moment: 500N.m
