Home / Products / Lifting Columns​​​​​​​ / Lifting Column JC35EA3C

loading

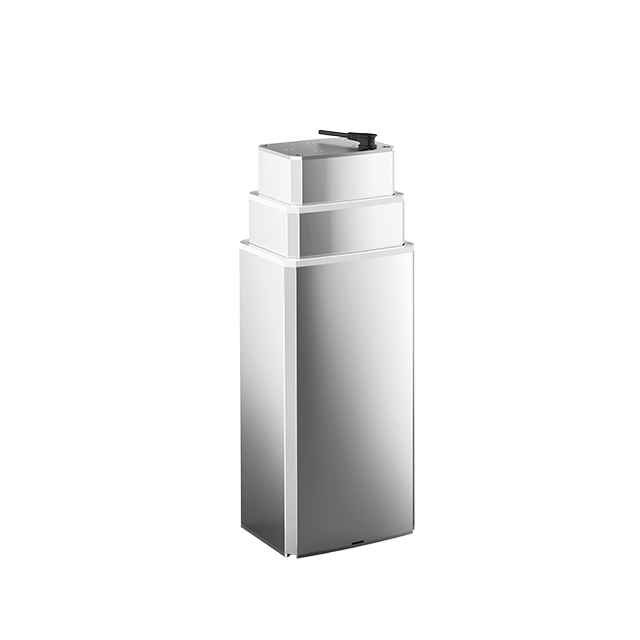

Lifting Column JC35EA3C

Max. load：2000N
IP grade : Max. IPX6
voltage: 29VDC


Availability:
Inquire

  • Lifting Column JC35EA3C

  • JIECANG

  • Output voltage:29VDC

  • Max. load：2000N

  • Retracted length:350±3mm

  • Stroke length：400±3mm

  • The current without load:≤2.5A

  • The max load current:≤5.0A

  • The speed without load:≤16mm/s

  • The speed with full load:≤14mm/s

  • Static bending moment:500NM

  • Dynamic bending moment:250NM

  • The color of shell: Aluminum color

  • IP grade: Max. IPX6


download Data sheet-JC35EA3C-en-20241029.pdf

download JC35EA3C-3D.stp
