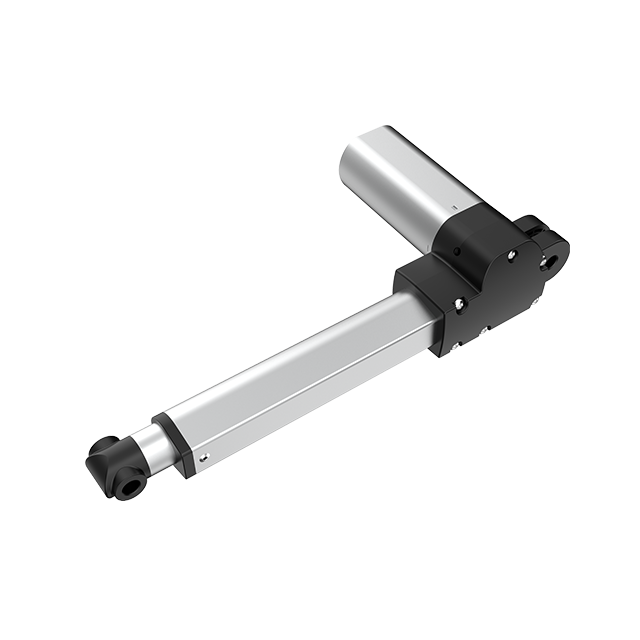

Load in push：4500N、4000N、2500N
Load in pull：2000N
Color: Black
IP grade: IP20
Stroke length:
4500N：35-200mm
4000N：35-155mm
2500N：35-415mm
Installation dimensions:
4500N：L=S+135（35＜S≤200）
4000N: Maximum installation distance L=355mm
2500N：L=S+135（35＜S≤415） Stroke ≥ 200mm needs to add top clevis, it can only be used in the occasion of straight up and down.
Noise level: no-load ≤ 48dB, load ≤ 50 (ambient noise ≤ 40dB)
Hall sensor : optional
Only push no pull option : optional
Built-in electrical limit switch
Weight: About 2kg (different stroke length and installation dimensions with different weight )
Static bending moment: lateral load are not allowed
